AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w

Brand Name : ABB

Model Number : AI561 A1

Certification : CO.CQ

Place of Origin : SWEDEN

MOQ : 1

Price : inquiry

Payment Terms : T/T

Supply Ability : 10 pieces a day

Delivery Time : today

Packaging Details : new and original with factory sealed

Manufacture Year : 2020

Con 6DS1311-8AEtrol System : AI561 A1

Application : Nuclear Power Plant

lead time : in stock

description : ABB

Weight : 4lbs

Contact Now

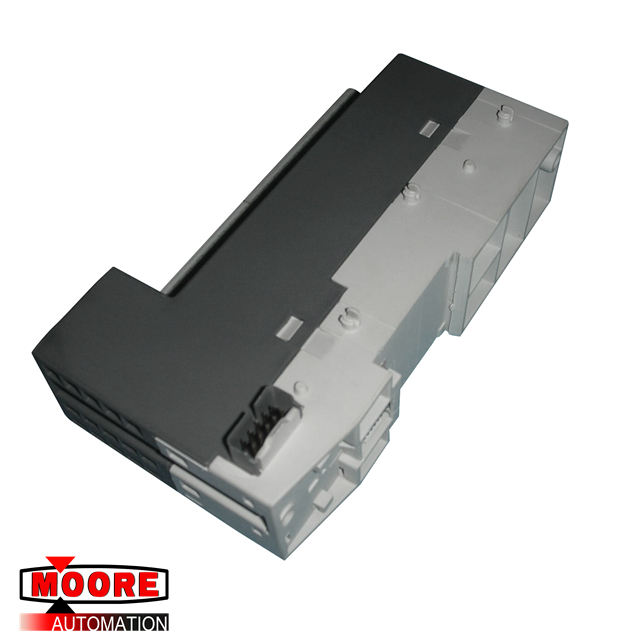

AI561 A1 1TNE968902R1101 ABB Analog Input Module 24vdc,1.5w

Brand/Manufacturer ABB/SWEDEN
Part Number

AI561 A1

Alternate Part Number 1TNE968902R1101
Description Analog Input Module
Dimennsions 8.4cm x 3.4cm x 13.5cm
Weight 0.12kg

Product Details

Technical Data

Process supply voltage L+:

Connections Terminal 19 for L+ (+24 VDC) and terminal 20 for M (0 V)

Rated value 24 VDC

Current consumption via L+ terminal 0.1 A

Inrush current (at power up) 0.05 A2s

Max. ripple 5 %

Protection against reversed voltage Yes

Protection fuse for L+ Recommended

Current consumption from 24 VDC power supply at the terminals UP/L+ and ZP/M of the CPU/bus module Ca. 10 mA

Galvanic isolation No

Surge-voltage (max.) 35 VDC for 0.5 s

Max. power dissipation within the module 2.7 W

Weight Ca. 120 g

Mounting position Horizontal or vertical

Cooling The natural convection cooling must not be hindered by cable ducts or other parts in the switchgear cabinet.

Technical Data of the Analog Inputs

Number of channels per module: 4 individually configurable voltage or current inputs

Distribution of channels into groups: 1 (4 channels per group)

Resolution:

Unipolar Voltage: 0 V...+5 V; 0 V...+10 V: 12 bits

Current 0 mA...20 mA; 4 mA...20 mA: 12 bits

Bipolar Voltage -2.5 V...+2.5 V; -5 V...+5 V: 11 bits plus sign

Connection of the signals I0- to I3- : Terminals 3, 6, 9, 12

Connection of the signals I0+ to I3+ : Terminals 2, 5, 8, 11

Input type: Differential

Galvanic isolation: No galvanic isolation between the inputs and the I/O bus

Common mode input range: Signal voltage plus common mode voltage must be within ±12 V

AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w

AI561 A1 1TNE968902R1101 Abb Analog Input Module 24vdc 1.5w
