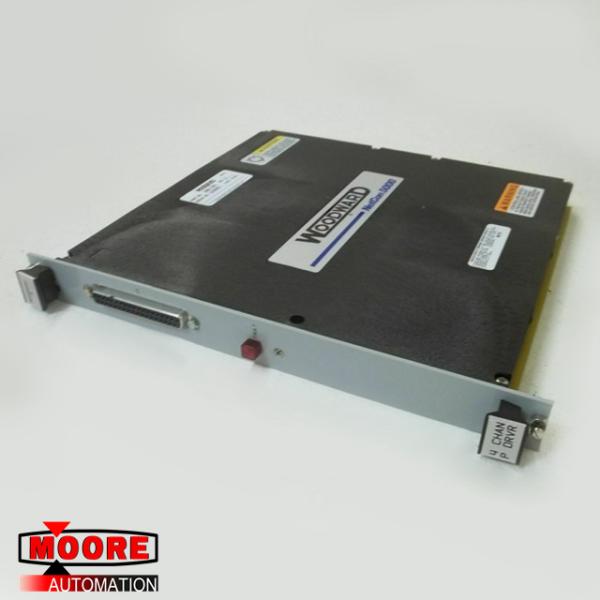

WOODWARD 5464-544 4-CHANNEL ACTUATOR CONTROL MODULE
| Brand/Manufacturer | WOODWARD/USA |
| Part Number | 5464-544 |
| Alternate Part Number | 5464-544 |
| Description | 4-CHANNEL ACTUATOR CONTROL MODULE |
| Dimennsions | 16.0cm x 14.7cm x 3.5cm |
| Weight | 0.79kg |
Product Details
70-pin platform
Microprocessor: Freescale S12XE, 50 MHz
Memory: 256 K flash, 16 K RAM, 4 K internal EEPROM, 64 K serial FRAM
Calibratible Memory: 1 M flash, 64 K RAM
Operating Voltage: 6.5–16 Vdc, 24 V (jump start), 5 V (crank)
Operating Temperature: –40 to +85 °C (105 °C possible in some applications)
Inputs:
VR or digital crank position sensor
Digital cam position sensor
17 analog
1 oxygen sensor
4 switch
1 speed
1 emergency stop
Outputs:
4 injector (high impedance) drivers
3 ignition coil drivers
1 tachometer driver
9 low-side drivers
1 main power relay driver
2 sensor supply (5 V) outputs
Communications:
2 CAN 2.0b channels
1 RS-485 channel
