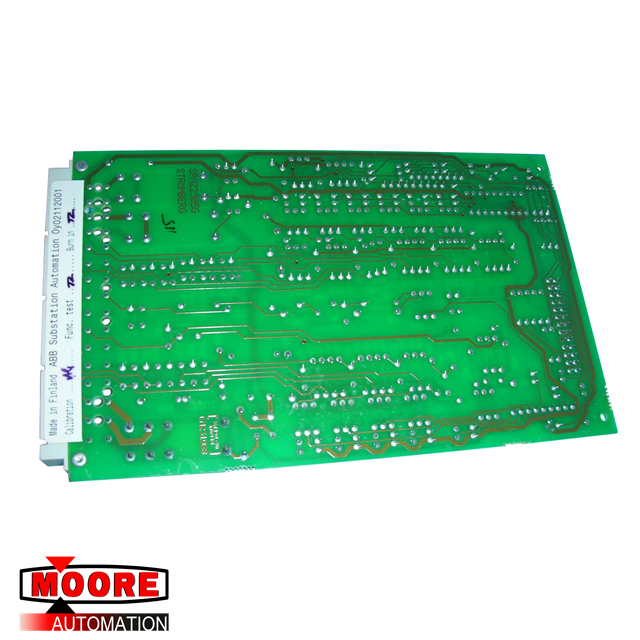

SPTR3B12 Plc Modules Abb Panel Board

Brand Name : ABB

Model Number : SPTR3B12

Certification : CO.CQ

Place of Origin : SWEDEN

MOQ : 1

Price : inquiry

Payment Terms : T/T

Supply Ability : 10 pieces a day

Delivery Time : today

Packaging Details : new and original with factory sealed

Manufacture Year : 2020

Con 6DS1311-8AEtrol System : SPTR3B12

Application : Nuclear Power Plant

lead time : in stock

description : ABB

Weight : 4lbs

Contact Now

SPAC310C SPAZ2306L ABB panel plc modules

Brand/Manufacturer ABB/SWEDEN
Part Number

SPTR3B12

Alternate Part Number

SPTR3B12

Description ABB Board
Dimennsions 20.7cm x 14.2cm x 5.1cm
Weight 0.30kg

Product Details

Mounting to DIN rail: according to DIN EN 50022-35, 15 mm deep. The DIN rail is centrally positioned between upper and lower edges of the module.

Mounting with screws: by 4 screws M4

Connector: removable connectors with screw-type terminals

conductor cross section: max. 2.5 mm2(grid space 5.08 mm); max. 1.5 mm2(grid space 3.81 mm)

Dimensions for installation: see figure on next page

Installation instructions

Installation position: vertical with connectors pointing up and down

Cooling: The natural convection cooling must not be hindered by cable ducts or other additional components installed in the cabinet.

Scope of delivery:

Digital Input and output module 07 DC 92

1 5-pin connector (grid space 5.08 mm)

1 3-pin connector (grid space 5.08 mm)

4 10-pin connectors (grid space 3.81 mm)

Number of channels per unit 32 transistor-outputs

Division of channels in groups 4 groups with 8 channels each,

channels An,00...An,07 and An,08...An,15

channels An+1,00...An+1,07 and An+1,08...An+1,15

Reference potentials for outputs ZP0, ZP1, ZP2 and ZP3

Voltage supply for outputs UP0, UP1, UP2 and UP3

Electrical isolation group from group, all groups from the rest of the unit

Signalization of output signals one yellow LED per channel,

LED activated according to the input signal

Output current

nominal value 500 mA at L+ = 24 V

max. value 4 A total current for each group

leakage current at 0 signal < 0.5 mA

Demagnetization at inductive load via internal varistor

Switching frequency for inductive load max. 0.5 Hz

Switching frequency for lamp load max. 11 Hz at max. 5 W

SPTR3B12 Plc Modules Abb Panel Board
